Description

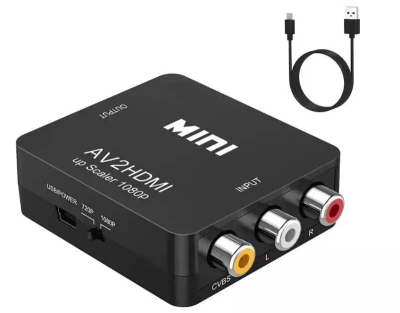

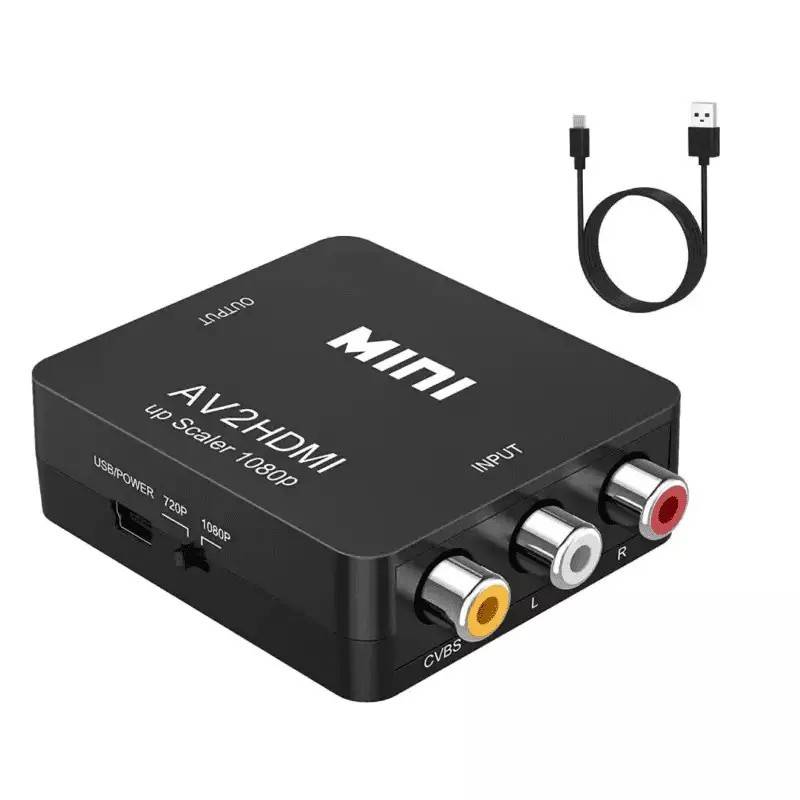

The Mini AV to HDMI converter is a universal converter for analog composite input to HDMI 1080p (60HZ) output. The analog to digital conversion in this module employs 10 bits maximal 162MSPS sampling, black/white level expansion, color transition improvement, dynamic range expansion, blue stretch , auto-detect and auto-convert the composite signal to 1080p(60HZ) output. Making video come alive, delivering the sharpest, most realistic HD visuals available.

Features

• No need to install drivers, portable, flexible, plug and play
• Provide advanced signal processing with great precision, colors, resolutions, and details
• Support PAL,NTSC3.58,NTSC4.43,SECAM,PAL/M,PAL/N standard TV formats input
• Support HDMI 1080p or 720p output

Product Specification

• Input ports:1xRCA (Yellow,White,Red)
• Output ports:1xHDMI
• Dimensions(mm):66(D)x55(W)x20(H)
• Weight (g):40
• Composite input:PAL,NTSC3.58,NTSC4.43,SECAM,PAL/M,PAL/N
• HDMI output:1080p/60Hz,720p/60Hz.
