Details - Chord NU1-N

UHF Wireless Beltpack Microphone System

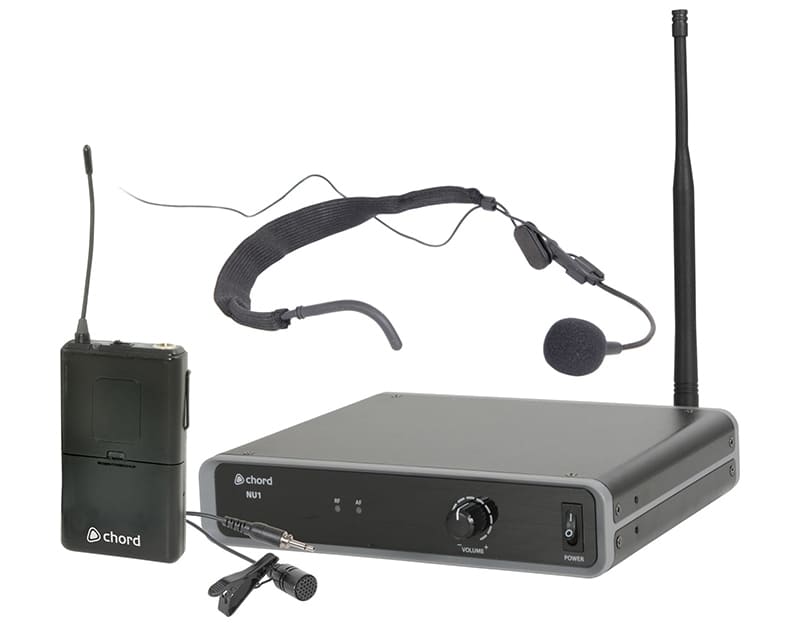

Wireless microphone system with fixed UHF beltpack transmitter and half rack-width receiver. Supplied with a choice of neckband or lavalier microphones. The receiver unit is compatible with standard 19" racks using the included rack ears and front mounting antenna accessories.

• Pilot tone & mute circuit for stable signal
• Licence free operation in UK & EU
• Rack-mounting accessories included
• Supplied with mains adaptor and 2 x AA batteries

Specifications

• Power supply: 12-18Vdc, 350mA (mains adaptor included)
• Batteries: 2 x AA (for transmitter - included)
• Range: 60m
• Signal to noise ratio: >105dB
• THD: <0.5% @ 1kHz
• Frequency response: 50Hz-18KHz ±1 dB
• Image rejection: >85dB
• Output impedance: 2.2k Ohms
• Output level: 400mV (balanced), 200mV (unbalanced)
• Dimensions : receiver: 44 x 198 x 190mm
• Weight : receiver: 710g
• Dimensions : transmitter: 205 x 68 x 25mm
• Weight : transmitter: 76g (no battery)
