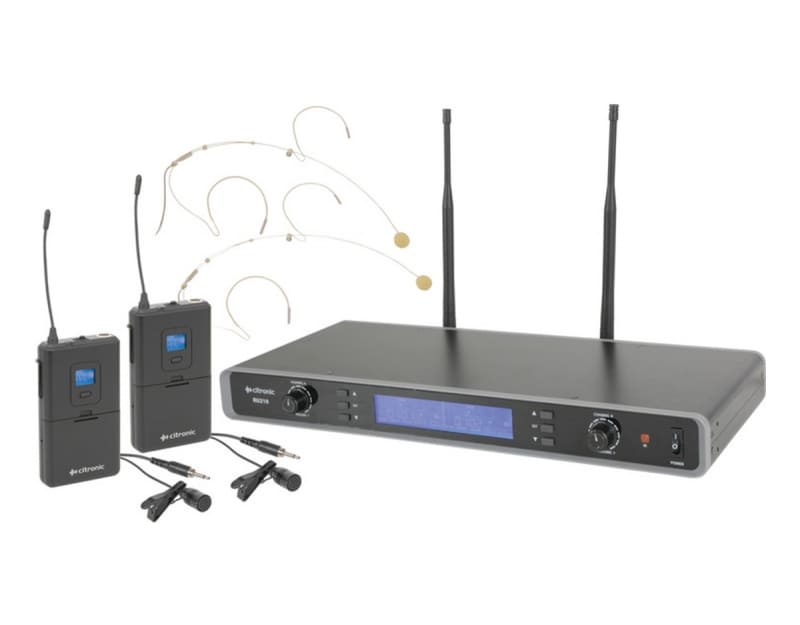

Details - Citronic RU210N

Tuneable Dual UHF Beltpack Microphone System

Dual channel PLL tuneable UHF wireless system with 2 beltpack transmitters and a choice of neckband microphones or lavalier microphones. The receiver unit is compatible with standard 19" racks using the included rack ears and front mounting antenna accessories. The RF carrier frequency is selected on the receiver and synchronized to the transmitter via infra-red at the touch of a button. Up to 2 RU210 systems can be operated together on the EU licence-free band.

• PLL tunable with 81 UHF frequencies
• Licence free operation in UK & EU
• Pilot tone & mute circuit for stable signal
• Rack-mounting accessories included
• Supplied with mains adaptor and 4 x AA batteries

Specification

• Power supply: 12-18Vdc, 500mA (mains adaptor included)
• Batteries: 4 x AA (2 per transmitter - included)
• Carrier frequencies: 863 - 865MHz (81 selectable frequencies)
• Range: 60m
• Signal to noise ratio: >105dB
• THD: <0.5% @ 1KHz
• Frequency response: 50Hz-18KHz ±1 dB
• Image rejection: >85dB
• Output impedance: 2.2k Ohms
• Output level: 400mV (balanced), 200mV (unbalanced)
• Dimensions receiver: 44 x 409 x 190mm
• Weight receiver: 1.37kg
• Dimensions transmitter: 110 x 67 x 24mm (ex antenna)
• Weight transmitter: 75g (no battery)
