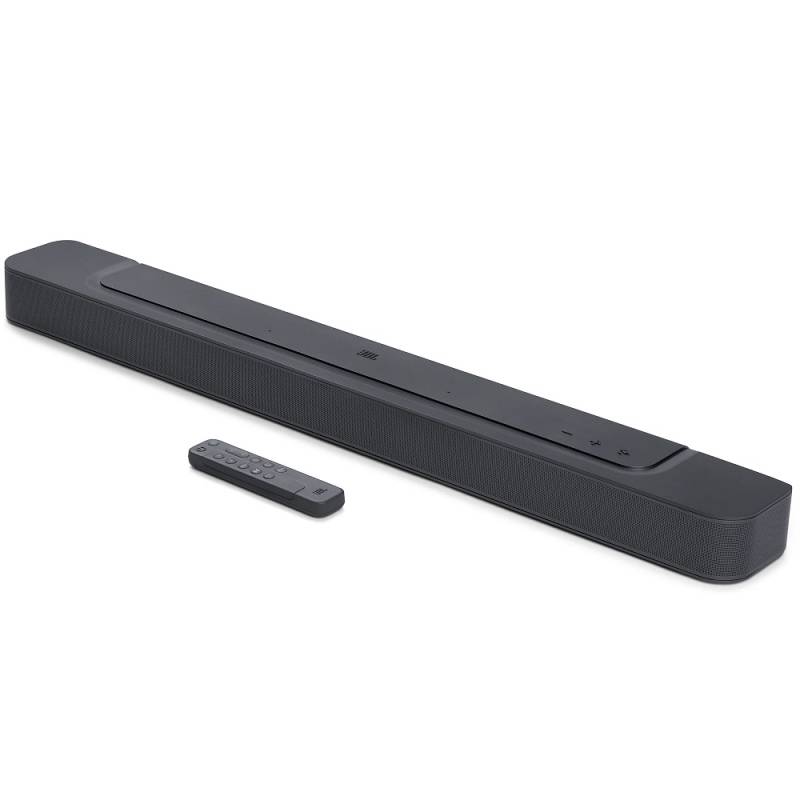

Details - JBL BAR300

Compact Design. Extraordinary 3D Sound.

It’s showtime. The all-in-one JBL Bar 300 turns your movies and TV shows into a true experience, and lifts your games to the next level. MultiBeam™ and Dolby Atmos® technologies deliver vivid 3D surround sound. While PureVoice technology optimizes voice clarity to ensure you never miss a word. When you’re ready to unwind with music or a podcast, take your pick of over 300 streaming services and enjoy them using AirPlay, Alexa Multi-Room Music (MRM) or Chromecast built-in™.

Features

Dolby Atmos® and MultiBeam™ surround sound

Punchy bass without a separate subwoofer

PureVoice dialogue enhancement technology

260W output power

Built-in Wi-Fi with AirPlay, Alexa Multi-Room Music and Chromecast built-in™

Works with voice assistant-enabled speakers

HDMI eARC with 4K Dolby Vision passthrough

Easy sound calibration

JBL One App

Technical specifications:

General specification

Model: BAR 300 Sound system:

5.0 channel

Total speaker power output (Max @THD 1%): 260W

Soundbar transducer: 4x (46x90)mm racetrack drivers + 2 x 0.75” (20mm) tweeters

Power supply: 100 - 240V AC, ~ 50/60Hz

Networked standby power: < 2.0 W

Operating temperature: 0°C - 45°C

HDMI specification

HDMI input: 1

HDMI eARC: 1

HDMI HDCP version: 2.3

HDR pass through: HDR10, Dolby Vision

Audio specification

Frequency response: 50Hz - 20kHz (-6dB)

Audio inputs: 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

USB specification:

USB port: Type A

USB rating: 5V DC, 0.5A

Supported file format: MP3

MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate: 16 - 48 kHz

MP3 bitrate: 80 - 320 kpbs

Wireless specification

Bluetooth version: 5.0

Bluetooth profile: A2DP 1.2, AVRCP 1.5

Bluetooth transmitter power: <15 dBm (EIRP) Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)

Bluetooth transmitter frequency range: 2400MHz – 2483.5MHz

2.4G Wi-Fi transmitter frequency range: 2412 - 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)

2.4G Wi-Fi transmitter power: <20 dBm (EIRP)

5G Wi-Fi transmitter frequency range: 5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz

5G Wi-Fi transmitter power: 5.15 - 5.25GHz <23dBm, 5.25 - 5.35GHz & 5.47 - 5.725GHz <20dBm, 5.725 - 5.825GHz <14dBm (EIRP)

Dimension

Soundbar dimensions (W x H x D): 820 x 56 x 103.5 mm / 32.3’’ x 2.2’’ x 4.1’’

Soundbar weight: 2.5kg/5.5 lbs

Packaging dimensions (W x H x D): 1060 x 120 x 170 mm/ 41.7” x 4.7” x 6.7”

Packaging Weight: 4.1 kg / 9 lbs

Dimension (Packaging)

Dimensions (W x H x D): 1060 x 120 x 170 mm/ 41.7” x 4.7” x 6.7”

Gross Weight: 4.1kg / 9lbs

Features and Benefits

Dolby Atmos® and MultiBeam™ surround sound

Immerse yourself in theater-quality 3D surround sound. Hear extraordinary sound effects from everywhere in the room, without the need for extra surround speakers.

Punchy bass without a separate subwoofer

Don’t let the compact size of the JBL Bar 300 fool you. It gives your home cinematic experience a boost of punchy bass from its built-in bass port, adding more excitement to every action scene and more depth to every song.

PureVoice dialogue enhancement technology

PureVoice technology uses our unique algorithm to optimize voice clarity to ensure you never miss a word of dialogue, even when the surround effects are at their peak.

260W output power

With 260 watts of total output power, the JBL Bar 300 transforms your movies, music and games into immersive sound experiences.

Built-In Wi-Fi with AirPlay, Alexa Multi-Room Music and Chromecast built-in™ Get ready to explore. Access over 300 online music streaming services through AirPlay, Alexa MRM and Chromecast built-in™. Enjoy all of your favorite audio content, Internet radio, and podcasts in high definition. The Wi-Fi connection also allows automatic software updates, so you can always enjoy the latest features.

Works with voice assistant-enabled speakers

Simply link the JBL Bar 300 with your voice assistant-enabled device and you can instantly ask Alexa, Google Assistant, or Siri to stream all your favorite music to the soundbar.

HDMI eARC with 4K Dolby Vision passthrough

Enjoy uncompressed Dolby Atmos surround sound through a single HDMI cable thanks to the HDMI eARC connection. The HDMI input connection also offers 4K video quality from a compatible video player or gaming console.

Easy sound calibration

Every room is different. Our audio calibration feature ensures that the JBL Bar 300 delivers the best 3D surround effects for any interior and room layout.

JBL One App

Customize EQ and control all of your compatible speakers with a single convenient app. The JBL One app helps you easily set up the soundbar, personalize settings, and browse the integrated music services to find your new favorite song

What’s in the box:

1 x Soundbar Remote control with 2 x batteries

Power cords (up to 4pcs depending on region SKUs)

1 x HDMI cable

2 x L-shape wall-mount bracket with screws

Quick start guide

Safety Instruction and Warranty Card

Wall mount template
