Details - Philips DVT1170

Easy, reliable audio recording


with one-touch operation

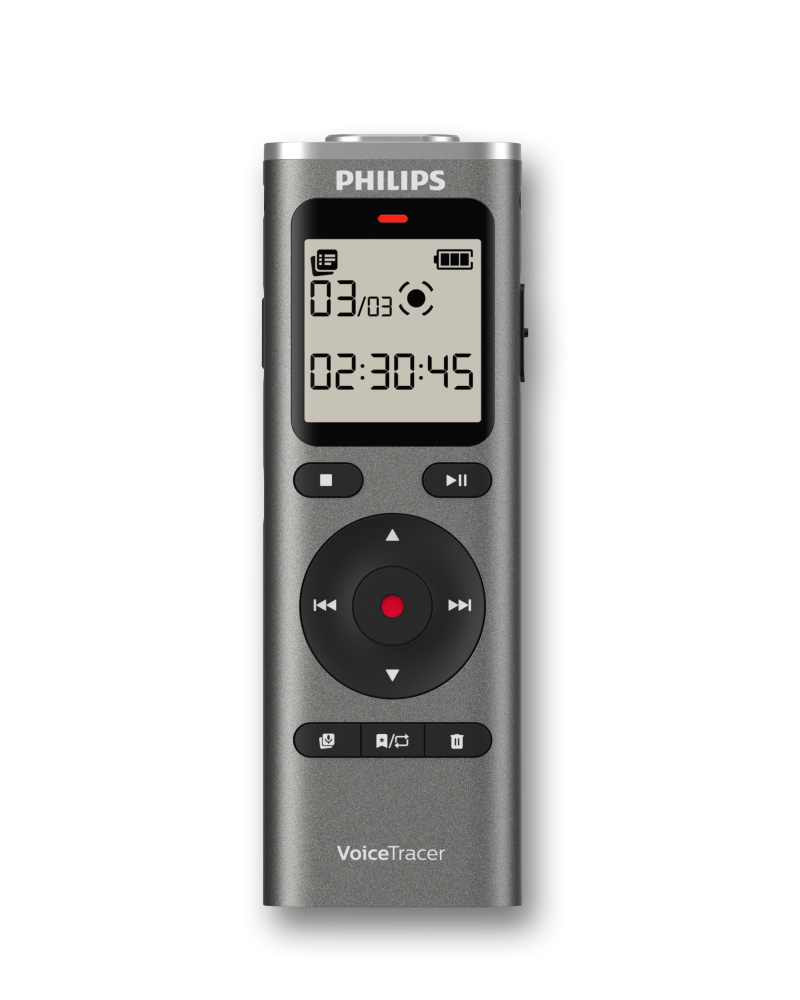

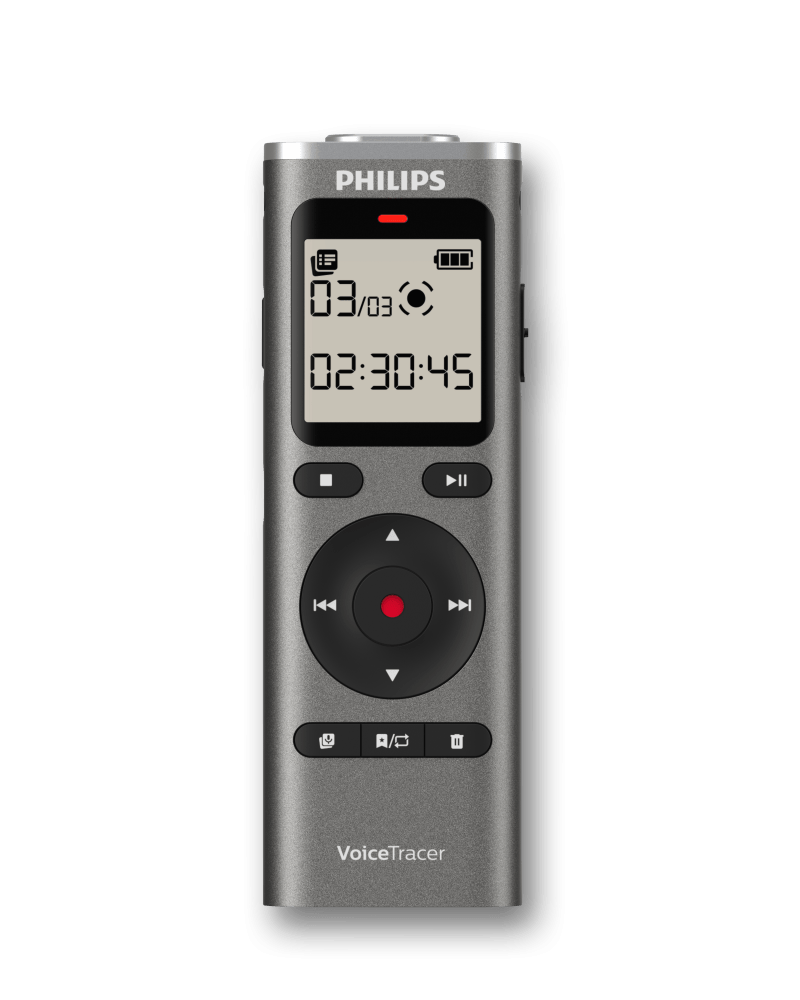

The Philips VoiceTracer 1170 is built for simplicity and performance. Whether you’re capturing interviews, conversations, or meetings, it ensures great sound quality and a smooth user experience. Thanks to its intuitive features and PC connectivity, sharing your recordings is as easy as recording them.

Features

High-quality 360° microphone for excellent sound quality

The high-quality 360° microphone delivers clear sound quality when recording notes, conversations, or meetings, at your desk or on the go.

Clear voice recording in WAV format

Capture your audio in uncompressed PCM (WAV) for crisp, reliable recordings—perfect for memos, interviews, and archiving.

Audio scenes presets optimize audio settings in any recording situation

Optimize recording quality with predefined scenes for memos, meetings, or music. Each scene adjusts the audio settings automatically to suit your environment.

Voice-activated recording for hands-free use

Enjoy hands-free convenience: recording starts when you speak and stops when you’re silent—ideal for dictation and meetings.

Time-stamped files for easy organization and navigation

Easily navigate through your files with embedded date and time stamps, helping you locate specific recordings quickly.

One-touch operation to start recording instantly

Just press and hold the record button to turn the device on and begin recording immediately.

8 GB of internal memory for extended recordings

Record for days with 8 GB of internal memory, ensuring you never miss important content due to lack of space.

microSD card slot for expanded capacity

Expand storage capacity by inserting a microSD card, enabling virtually unlimited recording time.

Extra long battery runtime for uninterrupted sessions

Record for up to 70 hours using two AAA batteries, and keep going by simply swapping them out—perfect for long sessions and on-the-go recording without delays.

SPCIFICATIONS

Connectivity


Headphones:

3.5 mm


Microphone:

3.5 mm, stereo socket


USB:

type C, high-speed USB 2.0


Display


Type:

segment LCD


Diagonal screen size:

34 mm/1.34 in


Storage media


Built-in memory capacity:

8 GB


Built-in memory type:

NAND Flash


USB mass storage


MicroSD card socket:

up to 128 GB


Audio recording


Built-in microphone:

1 channel


Recording formats:

PCM (WAV)


Recording quality:

384 kbps, 1536 kbps


Audio scenes:

Memo (384 kbps), Meeting (384 kbps), Music (1536 kbps)


Recording time (built-in memory):

46 h (384 kbps), 11 h (1536 kbps)


Bookmark function:

up to 10 per file


Voice-activated recording


Instant one-touch recording


Record monitor function


Sound


Frequency response:

200 Hz – 20 kHz


Speaker type:

oval


Speaker size:

20 × 30 mm


Speaker output power:

1 W


Convenience


Instant one-touch recording


Voice-activated recording


Keypad lock


Variable playback speed


Real-time clock


Remaining time display


Bookmarks (up to 10 per file)


File repeat


A–B repeat


Power


Battery lifetime:

up to 70 hours


Battery type:

2 × AAA battery


Number of batteries:

2


Batteries included:

yes


System requirements


Free USB port


Operating system:

Windows, macOS


Product dimensions


Product dimensions (W × H × D):

114 × 39.5 × 19 mm/4.5 × 1.6 × 0.8 in


Weight:

44 g/1.55 oz


GTIN-12/13:

(0)855971006960


Design and finishing


Color(s):

metallic graphite gray, matte black, silver


Package contents


Recorder


2 × AAA batteries


Quick start guide


USB-C cable


Operation conditions


Temperature:

5° – 45° C/41° – 113° F


Humidity:

10 % – 90 %, non-condensing
